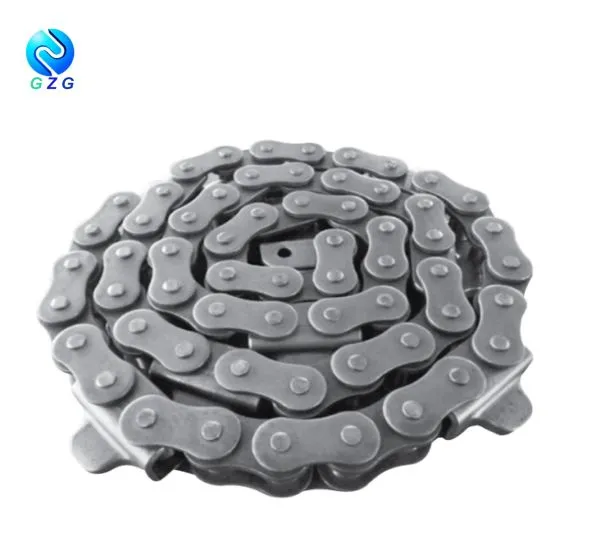

Pakume 3 tüüpiRauast sepistatud ajamikett, X348, X458, X678. It could work with drop-forged chain as an auxiliary tool. The outer link of drop-forged chain and the attachment teeth are engaged which could push whole drop-forged chain to move.
Find dimensions of Rauast sepistatud ajamikett siin. (X348 X458 X678)
 | |||||||||||||||
 | |||||||||||||||
| Kett Ei. | Mõõtmed | ||||||||||||||
| P | A | C | B | H | E | F | G | J | K | L | T | S | D | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 50.8 | 304.8 | 41.4 | 48 | 41.2 | 15.9 | 25.4 | 28.6 | 45.2 | 31.55 | 70.79 | 6.35 | 6.5 | 14.27 | 28.6 |
| X458 | 50.8 | 203.2 | 41.4 | 48 | 44.4 | 25.4 | 25.4 | 35 | 45.2 | 31.55 | 70.79 | 6.35 | 6.5 | 14.27 | 28.6 |
| X678 | 50.8 | 304.8 | 41.4 | 48 | 54 | 27 | 25.4 | 50.8 | 45.2 | 31.55 | 70.79 | 6.35 | 6.5 | 14.27 | 28.6 |
Kuidas kliendid meid leiavad?
Clients could find us on Carton fair or other industry exhibitions, or search GZG web online to contact us.
Carton Fair Show
Palun andke meile teada, et otsite käigukasti osi, et GZG saaks teid peagi aidata.
Kuum tags: rauast sepistatud ajamikett x348 x458 x678, Hiina, tootjad, tarnijad, tehas
