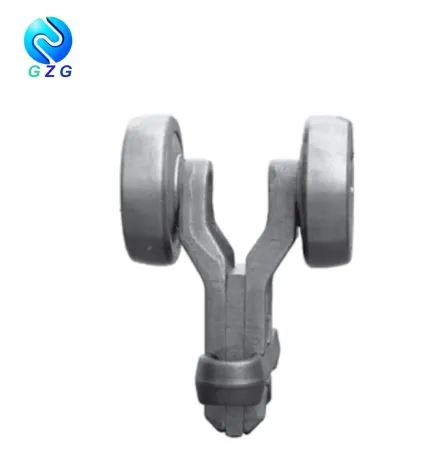

Laske{0}}sepistatud käru ja tagurpidi käruon ka konveierite jaoks mõeldud jõgedeta kettide kinnitus. Pakume nii käru kui ka tagurpidi käru. Nende peamised tüübid on X348, X458, X678, XT100, XT160, S348, 678. Käru ülaosa veereb juhikusse, selle põhi ühendab konveieriketti, mis võib edastada kineetilist energiat. GZG{7}}sepistatud käru on kvalifitseeritud näitama selliseid omadusi nagu suur koormus, sujuv libisemine, standardsuurus.
Drawing and dimensions of Langetage{0}}võltsitud käru
 | |||||||||||
| Kett Ei. | Mõõtmed | Kaal | |||||||||
| P | H | A | K | E | F | B | T | C | D | ||
| mm | mm | mm | mm | kraadi | mm | mm | mm | mm | mm | Kg/komplekt | |
| X348-1 | 100.0 | 64.0 | 102.0 | 84.0 | 4 | 47.8 | 14.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X348-2 | 100.0 | 63.5 | 122.0 | 94.0 | 6 | 48.0 | 18.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X458-1 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| X458-2 | 128.5 | 82.5 | 131.0 | 109.0 | 4 | 54.0 | 20.0 | 10.0 | 54.0 | 80.0 | 3.00 |
| X458-3 | 150.0 | 103.0 | 138.0 | 106.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.20 |
| X678 | 170.0 | 102.0 | 171.0 | 145.0 | 4 | 70.0 | 24.0 | 12.7 | 85.0 | 120.0 | 7.40 |
| XT100 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| XT160 | 171.0 | 103.0 | 180.0 | 140.0 | 6 | 70.0 | 26.0 | 16.0 | 84.0 | 120 | 8.80 |
 | ||||||||||||
| Kett Ei. | Mõõtmed | Kaal | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | kraadi | mm | mm | mm | mm | mm | mm | Kg/komplekt | |
| S348 | 100.0 | 65.8 | 143.0 | 104.0 | 3 | 47.8 | 22.0 | 6.0 | 40 | / | 60 | 1.5 |
 | ||||||||||||
| Kett Ei. | Mõõtmed | Kaal | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | kraadi | mm | mm | mm | mm | mm | mm | Kg/komplekt | |
| 678 | 136.0 | 89.0 | 146.0 | 114.0 | 4 | 54.0 | 18.0 | 10.0 | 86.0 | 54 | 82.00 | 3.6 |
Drawing and dimensions of Langetage{0}}sepistatud tagurpidi käru
 | ||||||||
| Kett Ei. | Mõõtmed | Kaal | ||||||
| P | H | A | F | T | C | D | ||
| mm | mm | mm | mm | mm | mm | mm | Kg/komplekt | |
| X348 | 86.0 | 48.0 | 93.0 | 55.0 | 6.0 | 40.0 | 60.0 | 1.3 |
| X458 | 95.0 | 44.0 | 120.0 | 54.0 | 10.0 | 54.5 | 82.0 | 2.5 |
Manus jaoks Trolley
 | ||||||||||
| Kett Ei. | Mõõtmed | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 135.5 | 47.8 | 80.0 | 25.4 | 8.5 | 13.5 | 6.0 | 14.0 | / |
| X458 | 54.0 | 148.2 | 54.0 | 52.5 | 33.5 | 10.5 | 13.5 | 10.0 | 17.0 | / |
| X678 | 76.2 | 177.8 | 70.0 | 92.0 | 41.5 | 13.5 | 20.5 | 12.7 | 20.8 | / |
| XT160 | 80.0 | 248.0 | 70.0 | 107.0 | 43.5 | 13.0 | 20.0 | 16.0 | 32.0 | / |
 | ||||||||||
| Kett Ei. | Mõõtmed | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 68.0 | 47.8 | / | 25.4 | 8.3 | / | 6.0 | / | / |
| X458 | 54.0 | 85.0 | 54.0 | / | 33.5 | 11.5 | / | 10.0 | / | / |
| X678 | 80.0 | 110.0 | 70.0 | / | 41.5 | 13.5 | / | 12.7 | / | / |
| XT160 | 80.0 | 110.0 | 70.0 | / | 43.5 | 13.0 | / | 16.0 | / | / |
 | ||||||||||
| Kett Ei. | Mõõtmed | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 146.1 | 47.8 | 39.7 | 25.4 | 8.3 | 3.6 | 6.4 | / | 1/2-13UNC |
| X458 | 50.8 | 177.8 | 54.0 | 47.6 | 33.5 | 10.3 | 5.0 | 9.5 | / | 5/8-11UNC |
| X678 | 76.2 | 222.0 | 70.0 | 66.7 | 41.5 | 13.5 | 5.6 | 12.7 | / | 7/8-9UNC |
| XT160 | 78.0 | 225.0 | 70.0 | 67.0 | 43.5 | 13.0 | 5.0 | 16.0 | / | M24X3 |
